Week 03 - Relight GSplat with normal lights workaround
Apr 05 - 12, 2026
Relight GSplat with normal lights
Develop a workaround solution for relighting Gaussian Splats without having to bake the lights into color attribute in Houdini
Result
Create objects in obj level then use as a mesh light in Solaris
Create objects in obj level then use as a mesh light in Solaris
Process

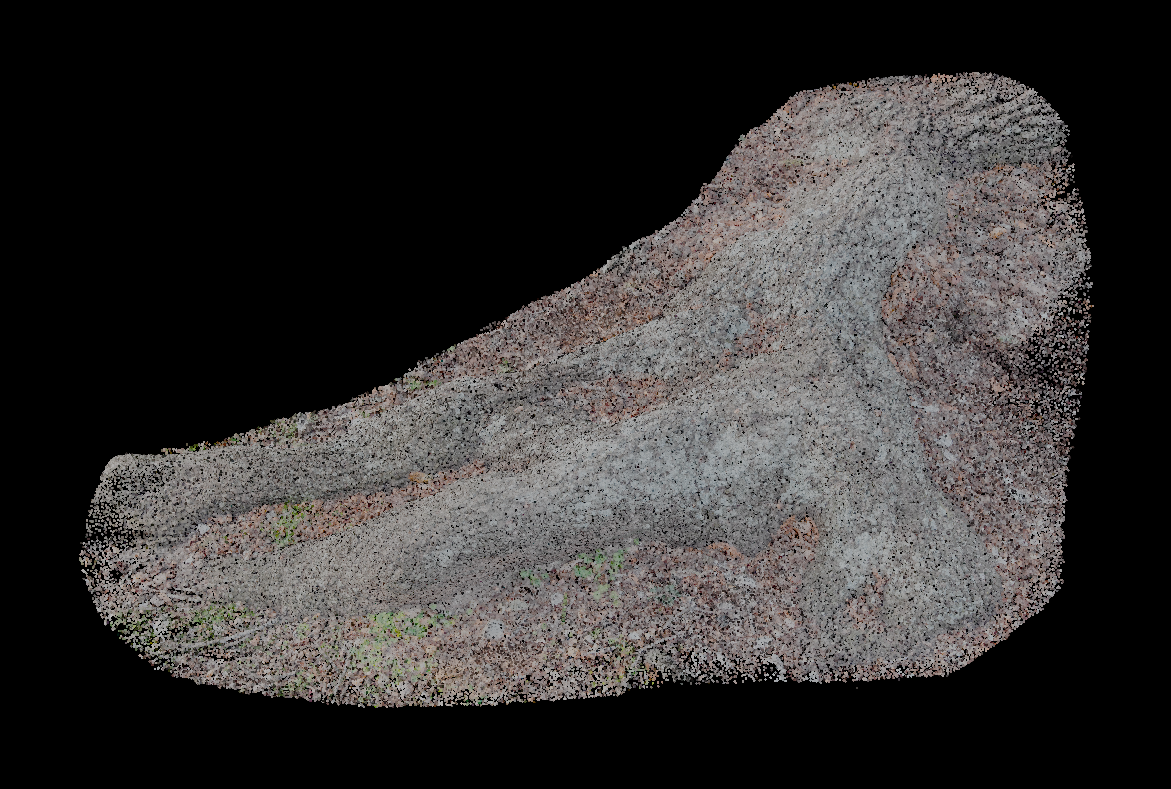

Original Gaussian Splats

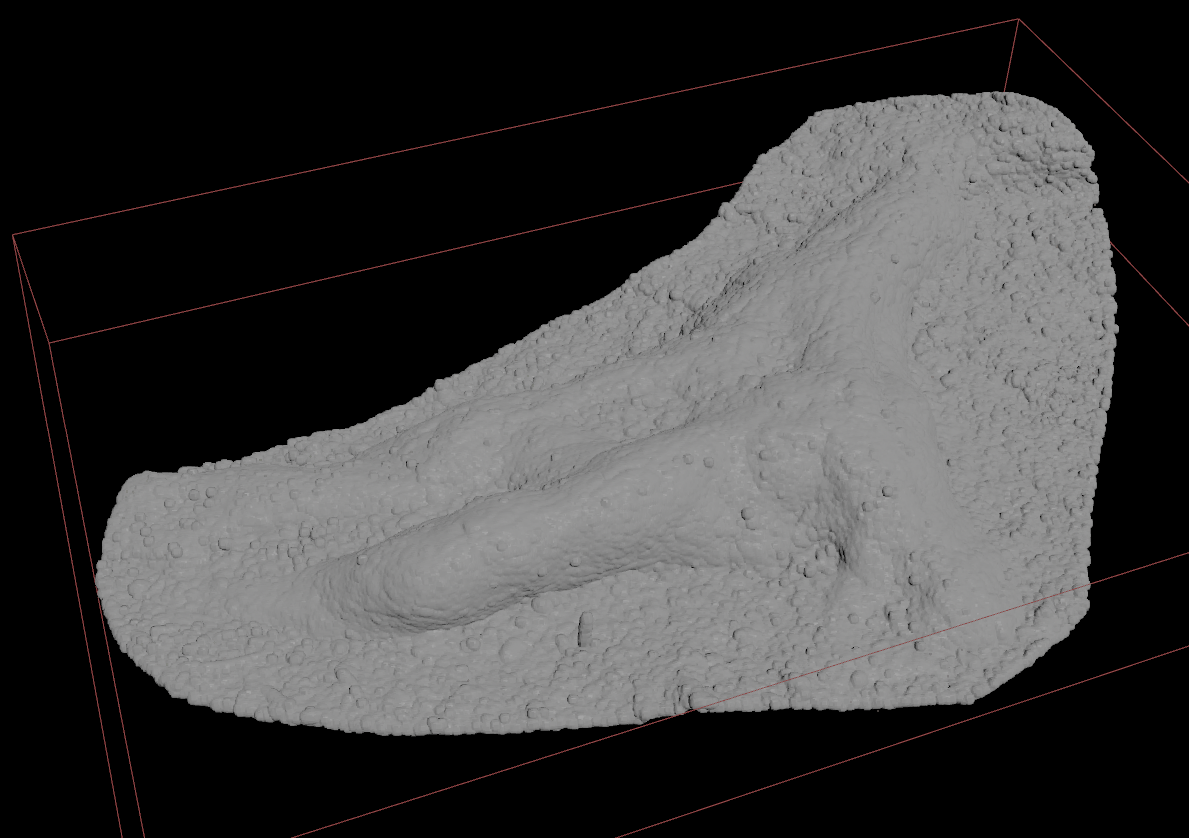

Convert to VDB using VBD from Particles node

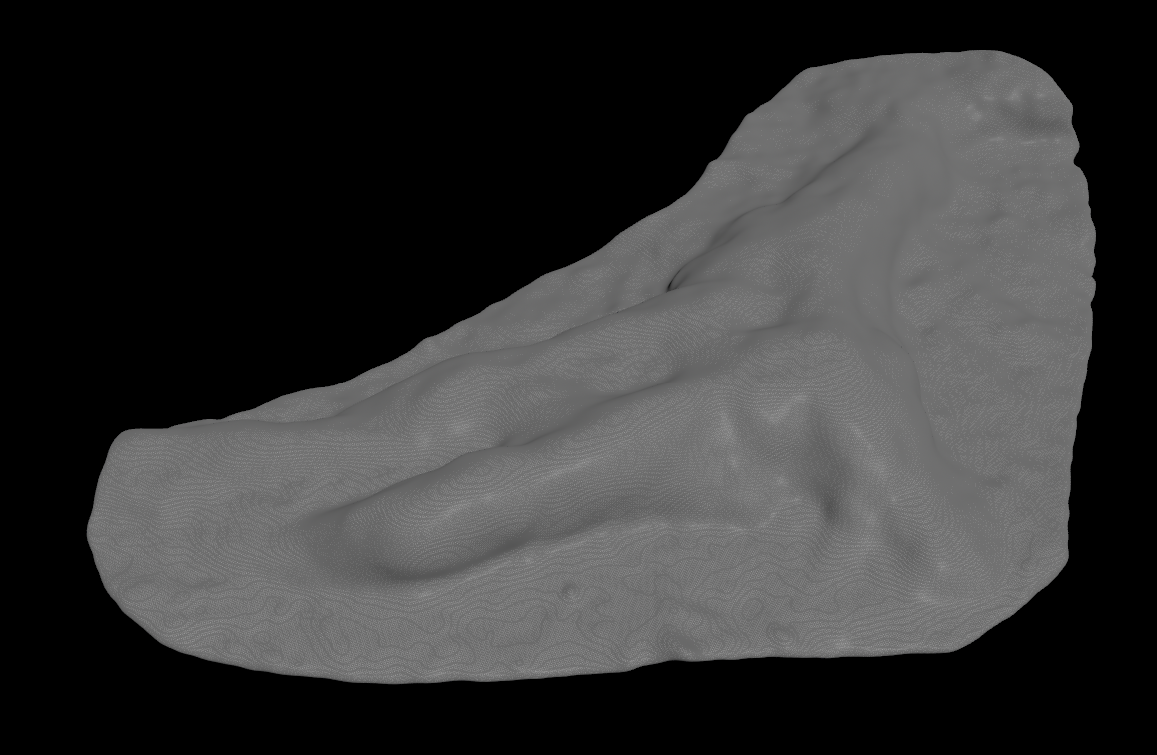

Smooth the VBD and convert to polygon

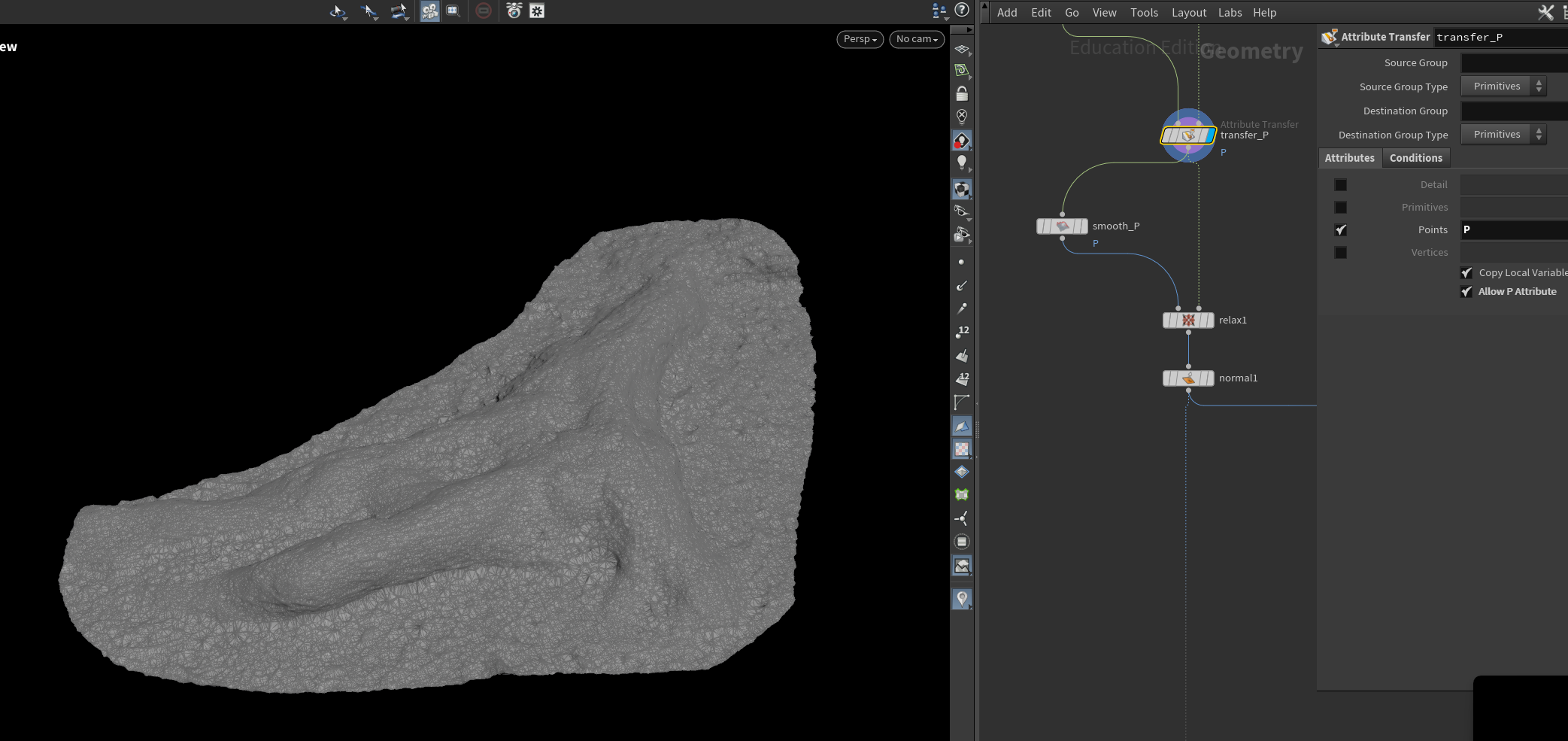

Project the polygon to the original points by using Attribute Transfer to transfer position from original Gaussian Splats points to the polygon

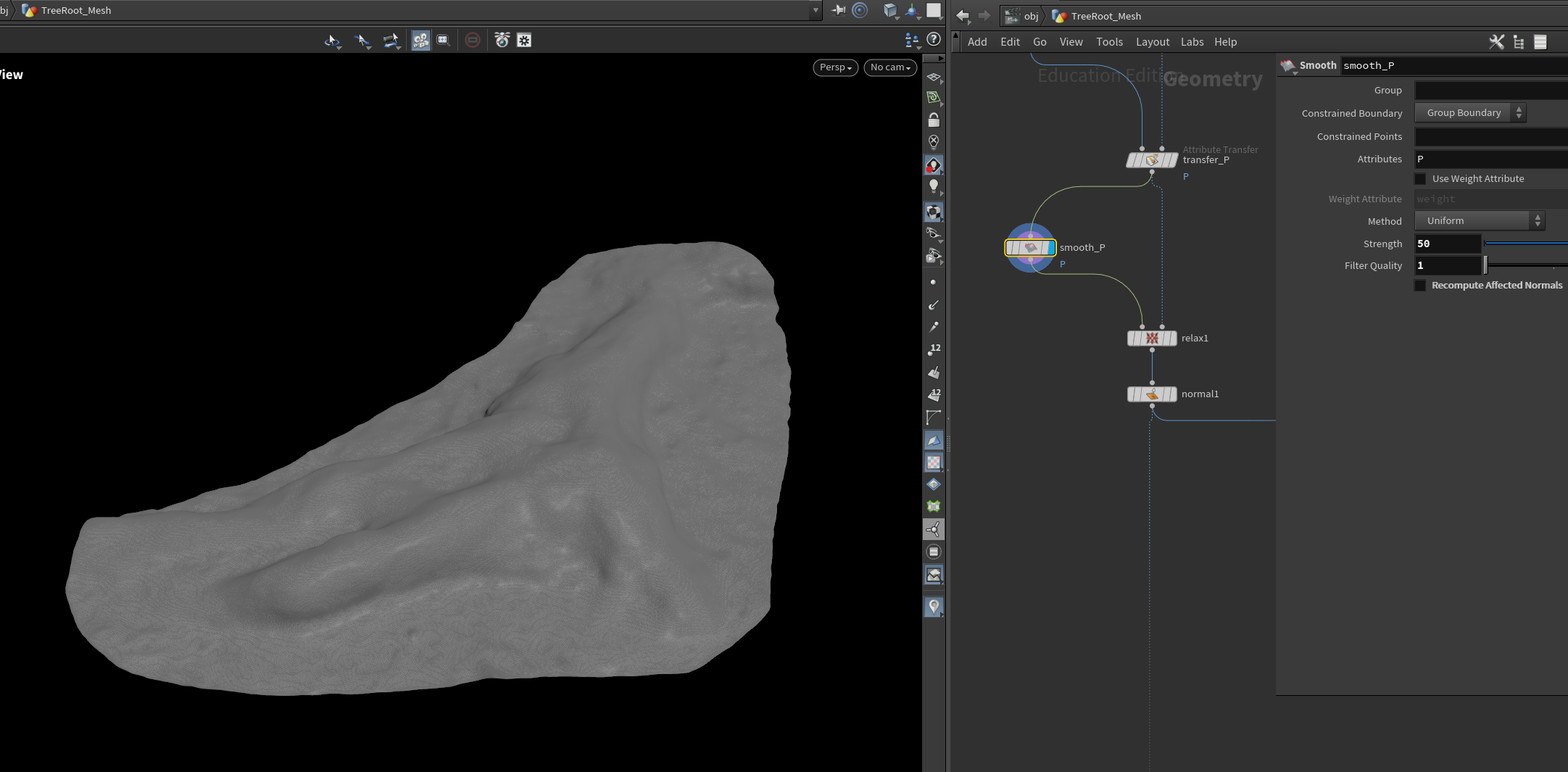

Smooth out the surface

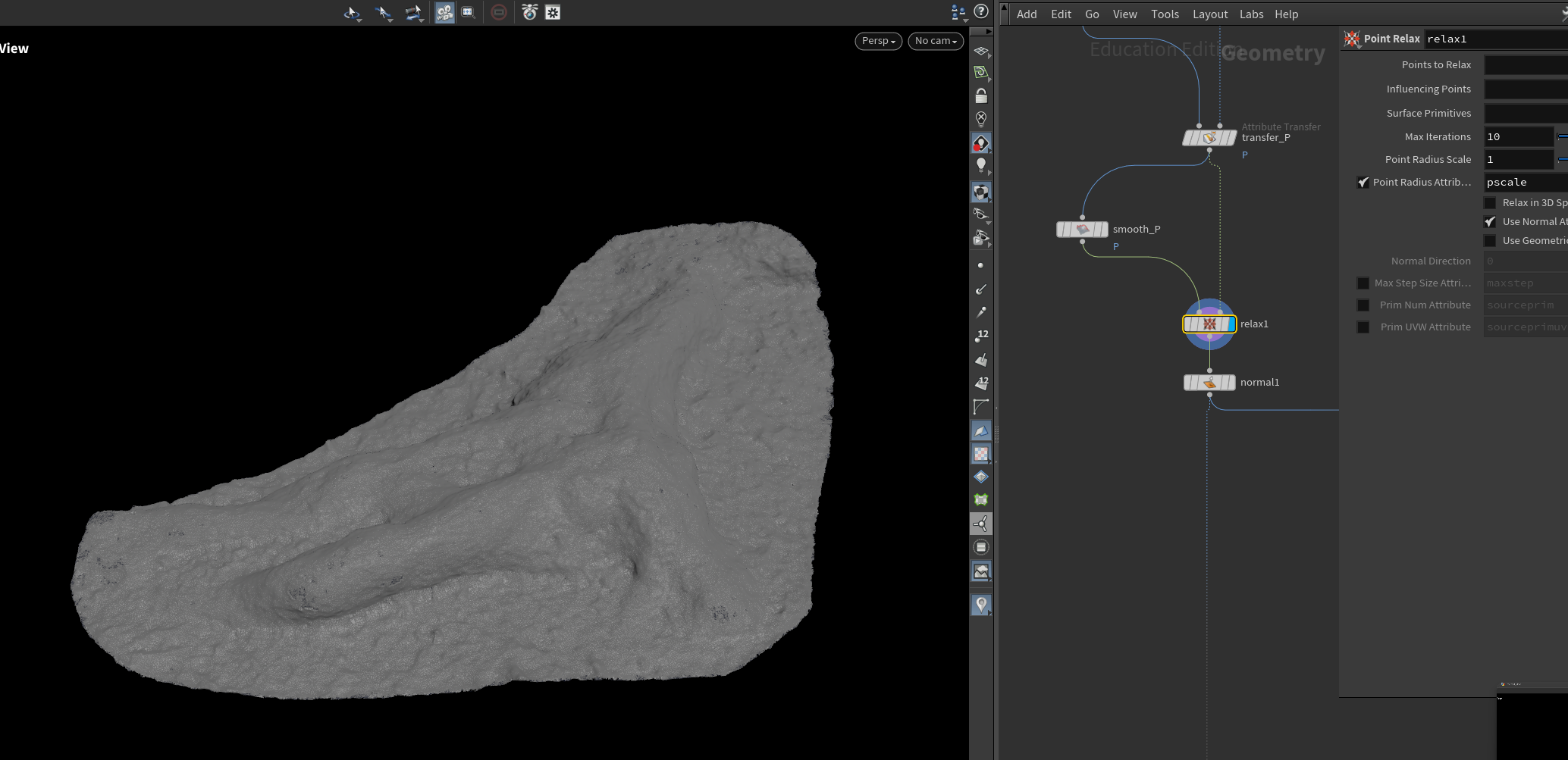

Use Relax node to bring the detail back

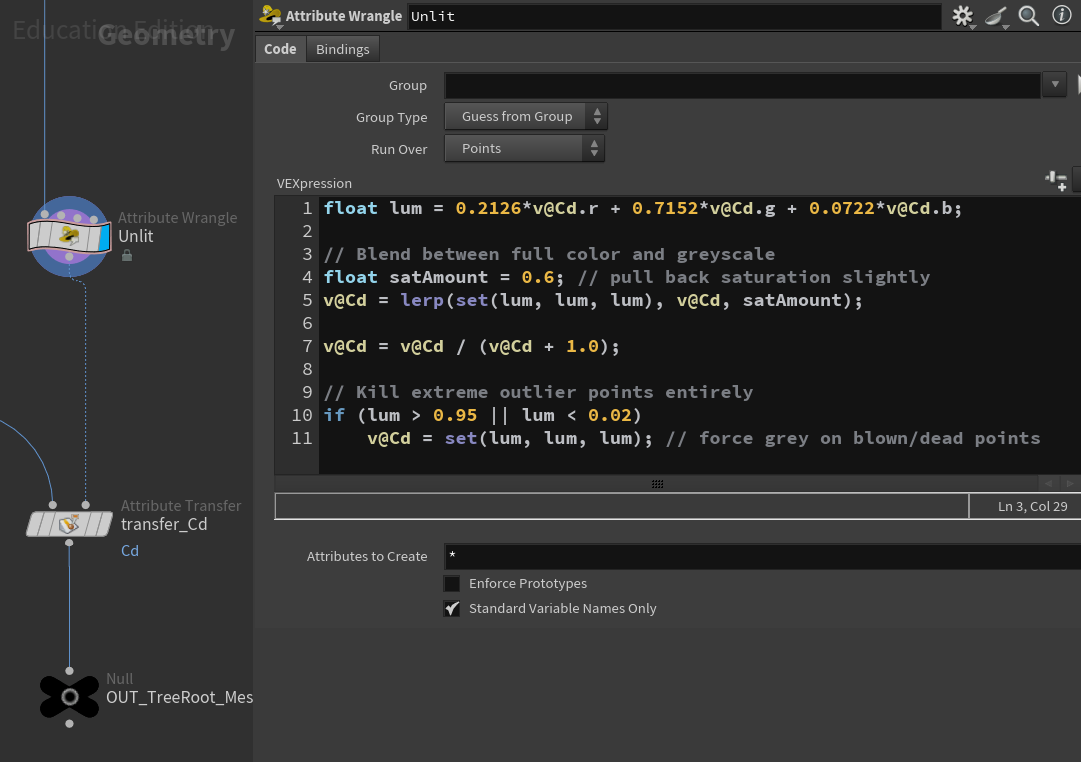

Run VEX code on the original Gaussian Splats point to flatten the color, removing highlight and shadow
Transfer flatten colors to the polygon

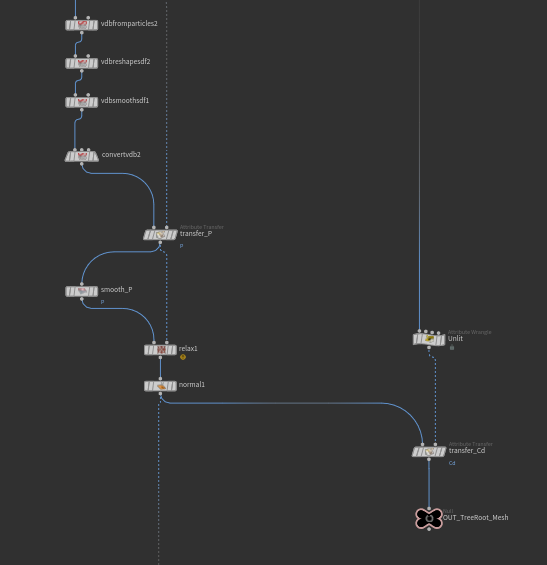

Overall nodes structure

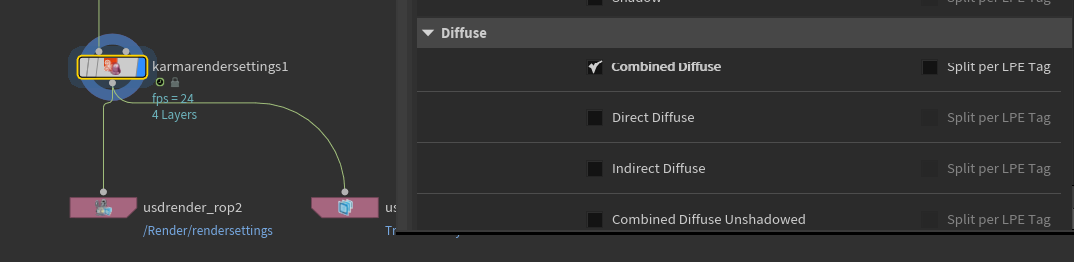

Set up lighting on the geometry and render just combined Diffuse pass from Houdini Karma

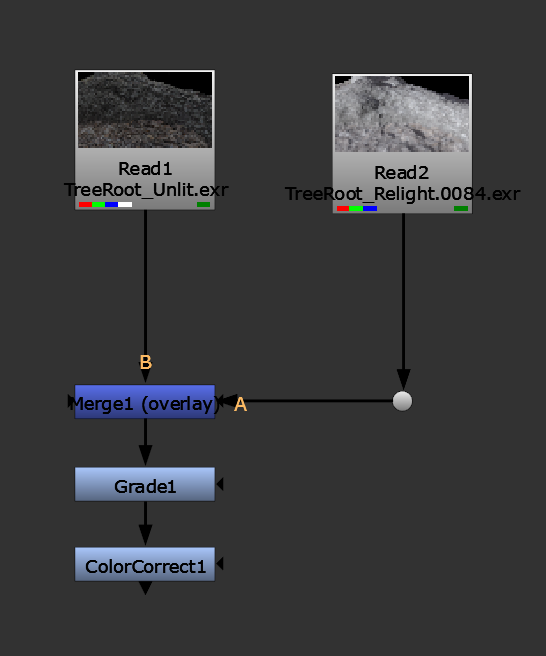

Compositing the lighting on unlit Gaussian Splats (rendering on V-Ray) in Nuke
